Capacities from 1,000 litres to 150,000 litres.

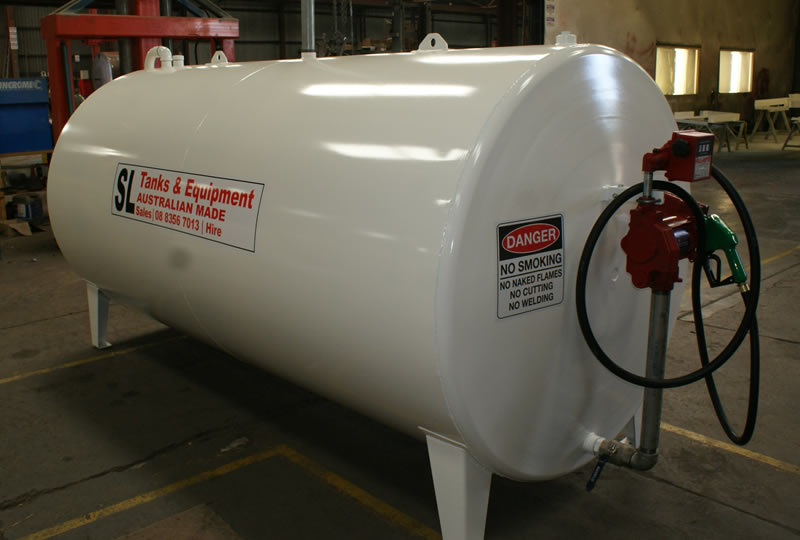

Onground Diesel & Petrol Storage Tanks
On ground tanks are supplied with steel cradles and galvanized access ladders. Optional products include manholes, bottom fill kits, pipe and fitting locations as required and various coatings both internal and external. Sizes range from 1000L to 110, 000L
ON GROUND STEEL TANK FEATURES
A broad range of uses:
- Suitable for Petroleum, Petrochemical, Agricultural and Industrial applications.
Strength and Durability you can depend on:
- Dished and flanged ends for improved strength (Dished only in small tanks)
- Painting to customers specifications ( 2 Pack Epoxy Standard )
- Galvanized ladders and platforms
A standard of consistent quality:
- Manufactured to meet or exceed industry and statutory requirements
- AS 1940
- AS 1692
DIMENSIONS AND CAPACITIES
TYPE |
Nominal Capacity Litres |
Actual Capacity Litres |
Dim A mm |
DimB mm |
DimC mm (ID) |
Body Material mm |
End Material mm |
Weight kg |
2 |
2,000 |
2,500 |
2,550 |
2,400 |
1,143 |
3 |
3 |
460 |
5 |
5,000 |
5,000 |
3,250 |
3,000 |
1,445 |
3 |
3 |
700 |
10 |
10,000 |
11,900 |
3,350 |
3,000 |
2,190 |
5 |
5 |
1,200 |
15 |
15,000 |
16,500 |
4,550 |
4,200 |
2,190 |
5 |
5 |
1,550 |
20 |
20,000 |
21,000 |
5,750 |
5,400 |
2,190 |
5 |
5 |
2,200 |
25 |
25,000 |
27,800 |
7,550 |
7,200 |
2,190 |
5 |
5 |
2,700 |
30 |
30,000 |
34,700 |
9,400 |
9,000 |
2,190 |
5 |
5 |
3,200 |
35 |
35,000 |
38,000 |
6,500 |
6,000 |
2,750 |
6 |
6 |
3,700 |
40 |
40,000 |
46,000 |
8,000 |
7,500 |
2,750 |
6 |
6 |
4,300 |
55 |
55,000 |
55,000 |
9,500 |
9,000 |
2,750 |
6 |
6 |
4,900 |
70 |
70,000 |
73,000 |
12,500 |
12,000 |
2,750 |
6 |
6 |
8,000 |
90 |
90,000 |
90,000 |
9,800 |
9,000 |
3,470 |
8 |
8 |
8,600 |
110 |
110,000 |
116,000 |
12,800 |
12,000 |
3,470 |
8 |
8 |
10,600 |
Tanks are supplied as standard with:
- Lifting lugs and ID plates
- Fill, Dip, Vent, Discharge socket, Drain point and Dipstick
- Galvanized ladders and platforms fitted to Type 10 and above
- Type 20 and above fitted with cradles (150mm) high Type 15 and below fitted with four legs
Options:
- Manholes 600mm or 450mm
- Alternative cradle heights to suit customer requirements
- Additional connections and flanged fittings
