Capacities from 1,000 litres to 150,000 litres.

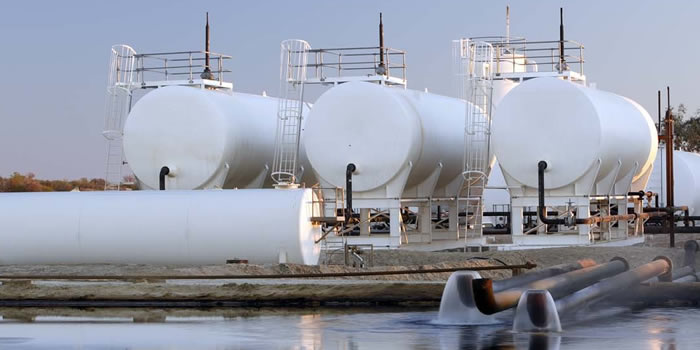

Oil Field & Crude Oil Storage Tanks
Manufactured to customers specifications to cater for Dewatering Applications, Production Storage, Fracking (Typically used for fracing wells in the oil and gas industry, a frac tank may also be used to store any liquids like run-off water, diesel fuel, oils and waste products.)

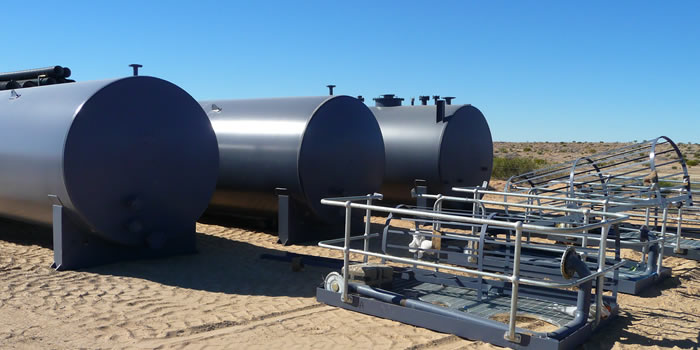

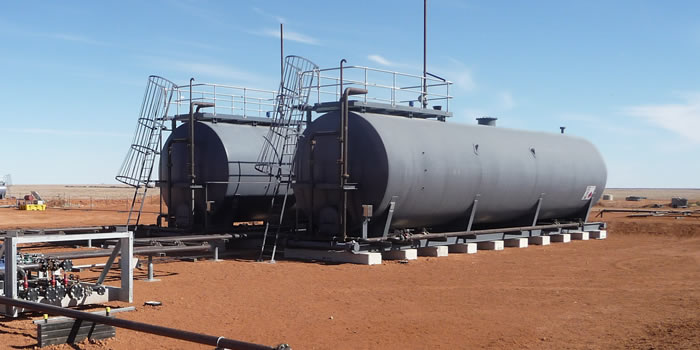

Oil Field Tanks are supplied with steel cradles and cages access ladders. Optional products include manholes, bottom fill kits, self closing gates, flame arrestors, emergency vents, pipe work and fitting locations as required and various coatings both internal and external. Sizes range from 1000L to 150, 000L
OIL FIELD TANK FEATURES
A broad range of uses:
- Suitable for Petroleum, Petrochemical and Industrial applications.
- Strength and Durability you can depend on:
- Dished and flanged ends for improved strength (Dished only in small tanks)
- Painting to customers specifications ( 2 Pack Epoxy Standard )
- Caged ladders and platforms
A standard of consistent quality:
Manufactured to meet or exceed industry and statutory requirements
- AS 1940
- AS 1692
DIMENSIONS AND CAPACITIES
TYPE |
Nominal Capacity Litres |
Actual Capacity Litres |
O/A Length (mm) |
Shell Length (mm) |
DimC mm (ID) |
Body Material mm |
End Material mm |
Weight kg |
2 |
2,000 |
2,500 |
2,550 |
2,400 |
1,143 |
3 |
3 |
460 |
5 |
5,000 |
5,000 |
3,250 |
3,000 |
1,445 |
3 |
3 |
700 |
10 |
10,000 |
11,900 |
3,350 |
3,000 |
2,190 |
5 |
5 |
1,200 |
15 |
15,000 |
16,500 |
4,550 |
4,200 |
2,190 |
5 |
5 |
1,550 |
20 |
20,000 |
21,000 |
5,750 |
5,400 |
2,190 |
5 |
5 |
2,200 |
25 |
25,000 |
27,800 |
7,550 |
7,200 |
2,190 |
5 |
5 |
2,700 |
30 |
30,000 |
34,700 |
9,400 |
9,000 |
2,190 |
5 |
5 |
3,200 |
35 |
35,000 |
38,000 |
6,500 |
6,000 |
2,750 |
6 |
6 |
3,700 |
40 |
40,000 |
46,000 |
8,000 |
7,500 |
2,750 |
6 |
6 |
4,300 |
55 |
55,000 |
55,000 |
9,500 |
9,000 |
2,750 |
6 |
6 |
4,900 |
70 |
70,000 |
73,000 |
12,500 |
12,000 |
2,750 |
6 |
6 |
8,000 |
110 150 |
110,000 150,000 |
116,000 150,000
|
12,800 16,300 |
12,000 15,600 |
3,470 3,470 |
8 8 |
8 8 |
10,600 14,800
|
Tanks are supplied as standard with:
- Lifting lugs and ID plates
- Fill, Dip, Vent, Discharge socket, Drain point and Dipstick
- Galvanized ladders and platforms fitted to Type 10 and above
- Type 20 and above fitted with cradles (150mm) high Type 15 and below fitted with four legs
Options:
- Manholes 600mm or 450mm
- Alternative cradle heights to suit customer requirements
- Additional connections and flanged fittings
