ANSI 150,300 - BSP, NPT Screwed - Firesafe - A105 Forged Steel Class 800

Carbon Steel Valves

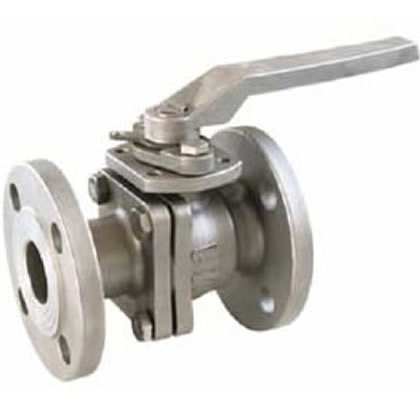

ANSI 150 Flanged Ball Valve

Sizes 1/2" to 10"

  • 2 Piece
  • Class ANSI 150
  • Firesafe to API 607
  • Working Temp -29 to 180 degrees C
  • Face to Face - ASME B16.10
  • End Connection - ASME B16.5
  • Valve Design - ASME B16.34
  • Valve Test - API 598

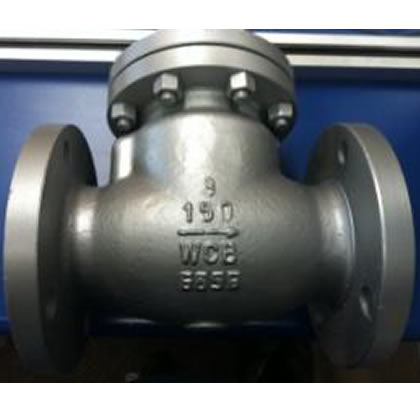

ANSI 150 Swing Check Valve

Sizes 2" to 10"

  • Class ANSI 150
  • Also Available in ANSI 300
  • Working Temp -29 to 425 degrees C
  • Bullet Proof Design
  • Face to Face - ASME B16.10
  • End Connection - ASME B16.5
  • Valve Design - ASME B16.34 & BS 1868
  • Valve Test - API 598

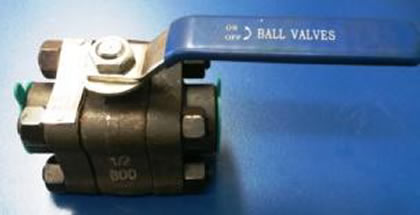

A105 Class 800 Forged Steel Ball Valves

Sizes 1/2" to 2"

  • 3 Piece
  • Class 800
  • A105 Forged Steel
  • Working Temp -29 to 150 degrees C
  • Available in BSP or NPT End Connections
  • Face to Face - MFG's Std
  • End Connection - ASME B1.20.1
  • Valve Design - BS 5351
  • Valve Test - API 598
